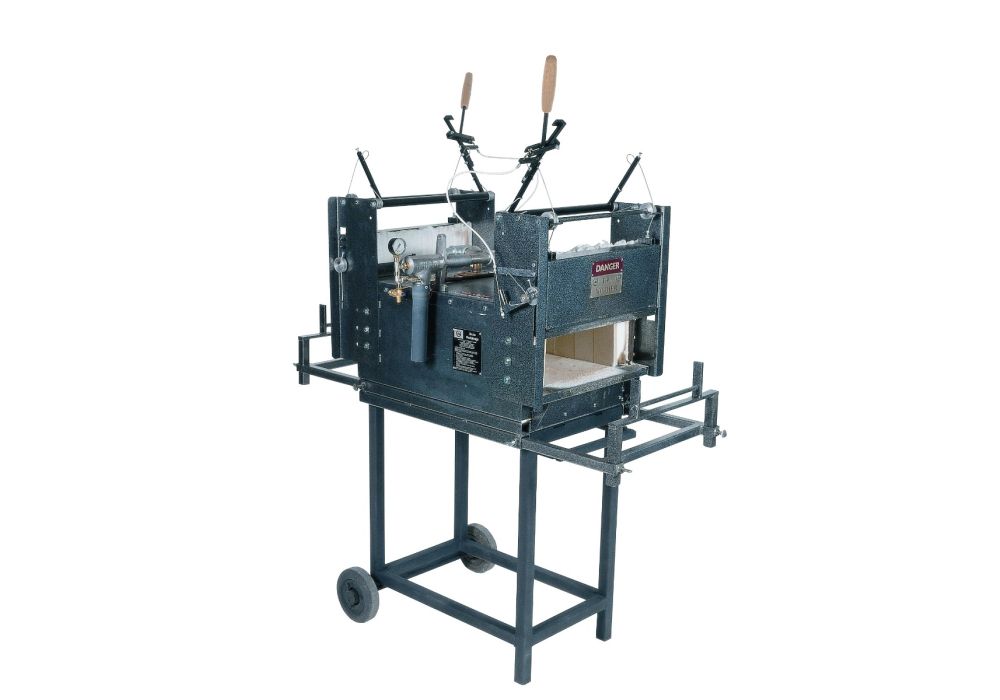

Cecil Swan Forge - The Mother
Product Code
SWTM
£4,076.40
£3,397.00
Please contact us on 01384 424232
to discuss discounts for large quantities.
to discuss discounts for large quantities.
Modular design enables forges to be linked together to increase chamber length
Optional stands
Fast 10–35 minute heat-up saves time
No flue required in well-ventilated workshops
Spring assisted vertical-lift doors can be single-handedly locked in different positions
Ceramic board linings are fully protected by castable refractory and tiles
Comes complete with a SWAN Flame Trimmer
Propane Flow Rates
pressure
|
cuft/h
|
cum/h
|
kg/h
|
btu/h
|
Kw
|
1.0 bar
|
27.74
|
0.786
|
1.422
|
69.356
|
20.33
|
2.0 bar
|
37.74
|
1.069
|
1.934
|
94.350
|
27.65
|
3.0 bar
|
45.18
|
1.280
|
2.316
|
112.960
|
33.11
|
4.0 bar
|
51.34
|
1.454
|
2.632
|
128.351
|
45.80
|
Dimensions
* Excluding door mechanisms |
Dimensions mm Height x Width x Depth |
Weight Kg |
|
Internal (furnace) | External (overall) | ||
Mother* | 155 x 330 x 730 | 680 x 620 x 910 |
160 |
