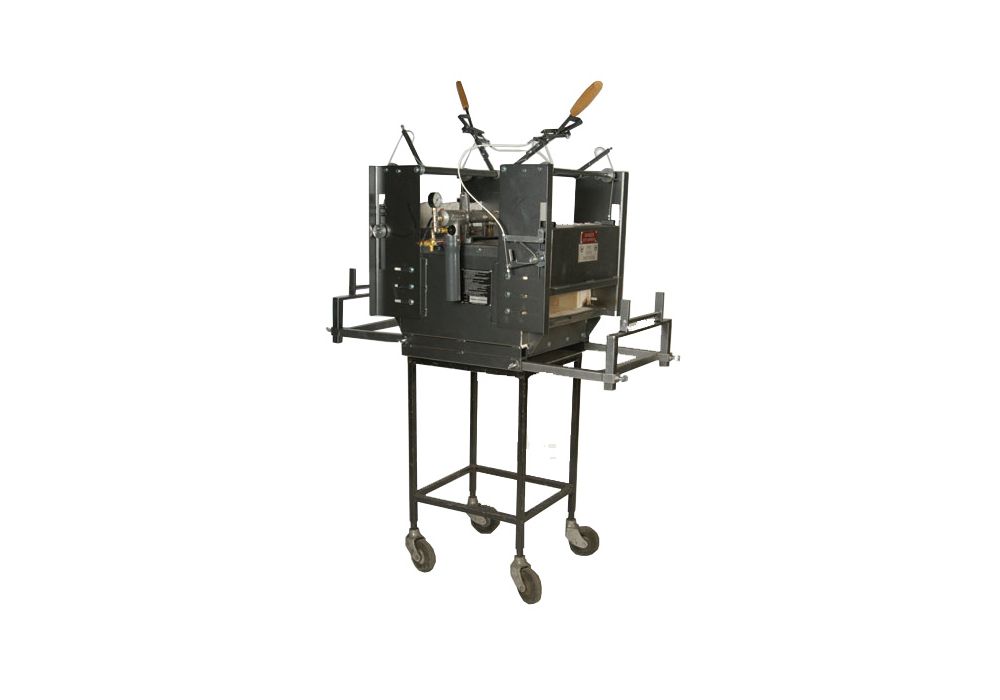

Cecil Swan Forge - The Mini Mother
Product Code
SWTMM
£3,838.56
£3,198.80
Please contact us on 01384 424232
to discuss discounts for large quantities.
to discuss discounts for large quantities.
This is a compact version of The Mother with three burners instead of four
Comes complete with a SWAN Flame Trimmer
Modular design enables forges to be linked together to increase chamber length
Optional stands
Fast 10–35 minute heat-up saves time
No flue required in well-ventilated workshops
Spring assisted vertical-lift doors can be single-handedly locked in different positions
Ceramic board linings are fully protected by castable refractory and tiles
Comes complete with a SWAN Flame Trimmer
Propane Flow Rates
pressure
|
cuft/h
|
cum/h
|
kg/h
|
btu/h
|
Kw
|
1.0 bar
|
21.62
|
0.612
|
1.108
|
54.055
|
15.48
|
2.0 bar
|
29.41
|
0.833
|
1.508
|
73.535
|
21.55
|
3.0 bar
|
35.22
|
0.997
|
1.805
|
88.040
|
25.80
|
4.0 bar
|
40.01
|
1.133
|
2.051
|
100.035
|
29.32
|
Dimensions
* Excluding doormechanisms |
Dimensions mm Height x Width x Depth |
Weight Kg |
|
Internal (furnace) | External (overall) | ||
Mini Mother* | 155 x 330 x 500 | 680 x 620 x 690 | 120 |
