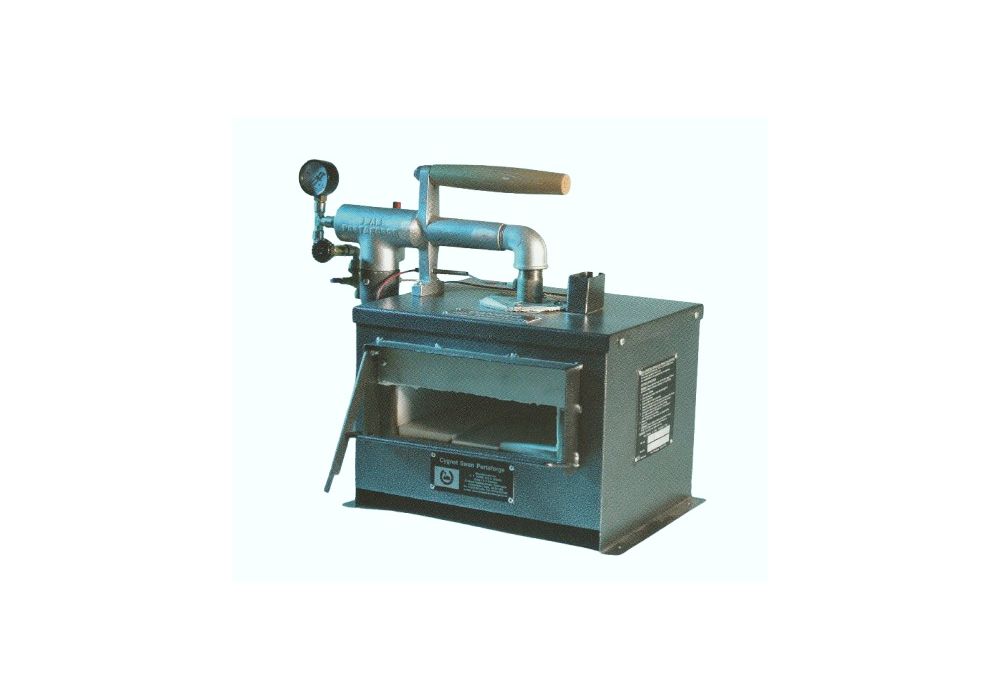

Cecil Swan - Cygnet Portable Forge
portable forge available with single or twin burners
Product Code
SWCY
Please contact us on 01384 424232
to discuss discounts for large quantities.
to discuss discounts for large quantities.
Ideal for workshop duties, as a reserve backup, or for mobile work
Rear exhaust aperture for easier heating of long bars
Collapsible support bar for heating short lengths
Owner/operator replaceable furnace liner and base bricks
Propane Flow Rates
pressure
|
cuft/h
|
cum/h
|
kg/h
|
btu/h
|
kw
|
1.0 bar
|
9.05
|
0.256
|
0.464
|
22.636
|
6.63
|
2.0 bar
|
12.32
|
0.349
|
0.631
|
30.793
|
9.03
|
3.0 bar
|
14.75
|
0.418
|
0.756
|
36.867
|
10.81
|
4.0 bar
|
16.76
|
0.475
|
0.859
|
41.890
|
14.10
|
Dimensions
* tapered towards the back |
Dimensions mm Height x Width x Depth |
Weight Kg |
|
Internal (furnace) | External (overall) | ||
Single Burner* | 145 x 303 x 300 | 500 x 610 x 490 | 23 |
Twin Burner* | 145 x 303 x 300 | 500 x 610 x 490 | 24 |
