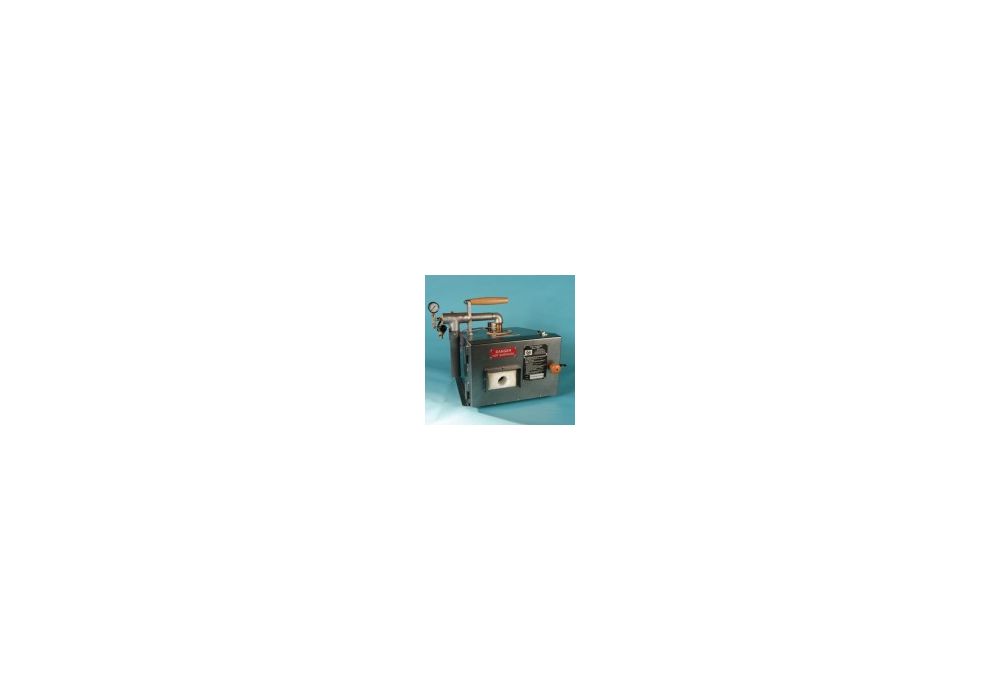

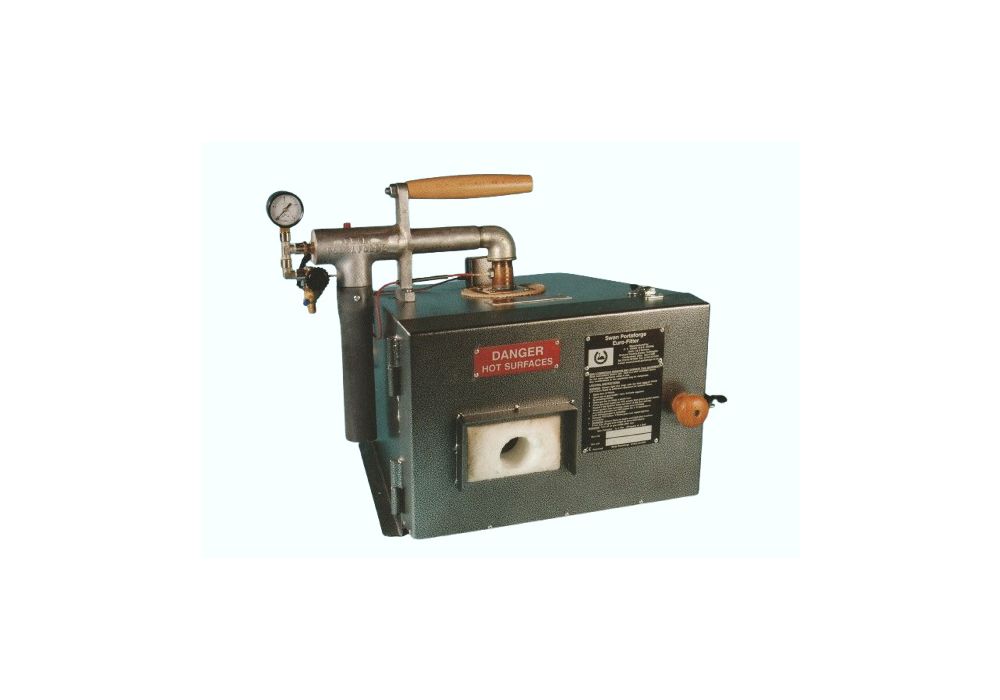

Cecil Swan - Euro-Fitter Portable Forge
Excellent forge with the same qualities as the standard but with a taller chamber. Also available with front or rear exhaust option and with single or twin burners
Product Code
SWEF
Please contact us on
Increased chamber height
A very hot and efficient portable forge
Front and rear exhaust options
Quick heat-up capability saves you valuable time
Propane Flow Rates
|
pressure
|
cuft/h
|
cum/h
|
kg/h
|
btu/h
|
Kw
|
|
1.0 bar
|
11.19
|
0.317
|
0.574
|
27.981
|
8.20
|
|
2.0 bar
|
15.23
|
0.431
|
0.780
|
38.064
|
11.16
|
|
3.0 bar
|
18.23
|
0.516
|
0.934
|
45.572
|
13.36
|
|
4.0 bar
|
20.71
|
0.587
|
1.062
|
51.781
|
15.18
|
Dimensions
| * tapered towards the back |
Dimensions mm Height x Width x Depth |
Weight Kg |
|
| Internal (furnace) | External (overall) | ||
| Single Burner* | 145 x 303 x 300 | 500 x 610 x 490 | 23 |
| Twin Burner* | 145 x 303 x 300 | 500 x 610 x 490 | 24 |
