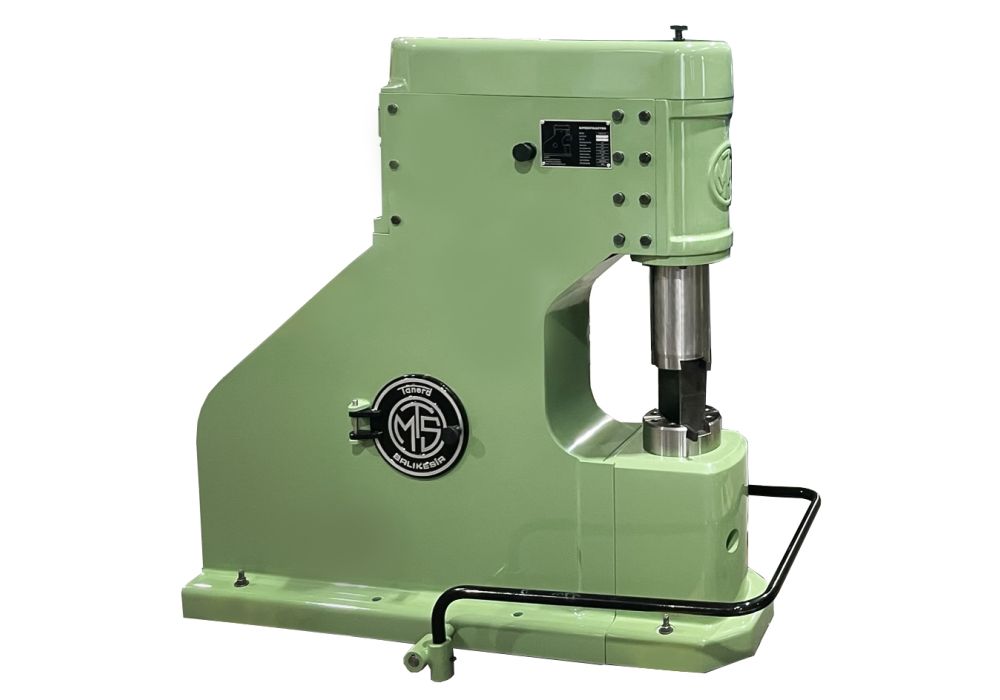

TANERD PNEUMATIC POWER HAMMERS
Technical characteristics and basic dimensions of which are below – mentioned TMS-40 P, TMS-50 P, TMS -60 PG models of Pawer Hammers, lubricating systems are supplied automatically by making connection between grease tanks and check valve system on the back-roller. From the moment the machine is powered up, oiling process starts automatically, and it continues until machine is stopped.
- The body has been made up of low-carbon st-37 sheet iron which is in quality of ERDEMIR A 1
- Alter process of welded assembly was ended, body has been subjected to stress relief anneal at 620C/h.
- Compressors and hammer rollers have been made up of GG.26 special -alloy cast iron material and mounted to body with 8.8 steel screws.
- Anvil and hammer pieces have hardened and tempered
- Anvil coaster and hammer piston enable the machine to work various ways by notating eight different directions.
Points to be paid attention:
1. Sections working mechanically have been supported and greased with suitable bearings. even so they should be checked once every three months.
2. Once a week, oil needs to be pumped with grease pump 2 or 3 times from grease nipple on the piston rod gland
3. Grease tank at the top side of the machine should be check in every effort and if the grease level is decreasing, it should be filled.
4. Machines are guaranteed for 2 years from the point of materials and workmanship.
TMS-60 PG | TMS-50 P | TMS-40 P | |
Working systems | Pnuematic | Pnuematic | Pnuematic |
Hammer weight | 60 kg | 50 kg | 40 kg |
Stroke | 260 mm | 230 mm | 200 mm |
Number of strokes | 230 d/d | 230 d/d | 240 d/d |
Engine Power | 7.5 kw | 5.5 kw | 4 kw |
Working voltage | 380 v | 380 v | 380 v |
Engine RPM | 1450 d/d | 1450 d/d | 1450 d/d |
Chain Measurement | 5/8 x 11 x 200cm | 5/8 x 11 x 183cm | 5/8 x 11 x 183cm |
Net Weight | 1400 kg | 900 kg | 800 kg |
